MClimate CO2 Display Lite
The MClimate CO2 Display Lite is a LoRaWAN device by MClimate with temperature, humidity, light measurement supported on EU863-870 (LoRaWAN 1.0.3). The Datacake template ships with a payload decoder, dashboard layout and downlink hooks where supported, ready to use on Datacake's free LoRaWAN Network Server.
Runs on Datacake's free LoRaWAN Network Server — no extra LNS bill, no per-gateway fee.
Device specifications
- Sensors
- temperature, humidity, light, co2
- MAC version
- 1.0.3
- Dimensions
- W 122 mm · L 22 mm · H 58 mm
- Weight
- 80 g
- IP rating
- IP30
- Operating temperature
- 0°C to 50°C
- Key provisioning
- custom, manifest
- Key security
- read protected
Manufacturer resources
About this device

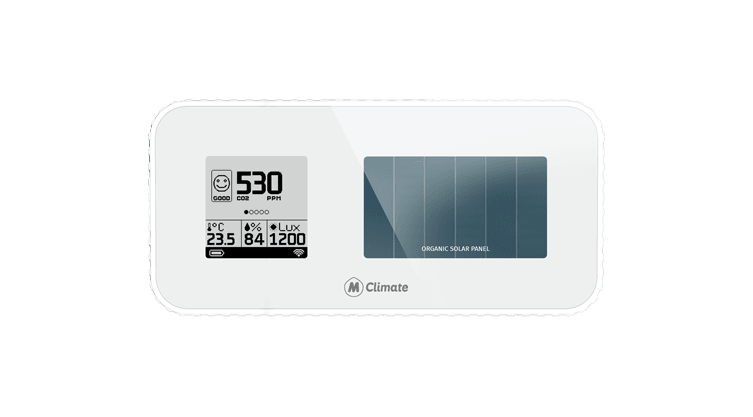

MClimate CO2 Display lite LoRaWAN is a stand-alone CO2 sensor powered entirely by solar energy using an organic solar panel. The device features a 1.54" e-ink screen, temperature and humidity sensor, LUX sensor and NDIR CO2 sensor.
