MClimate 16A Switch & Power Meter
The MClimate 16A Switch & Power Meter is a LoRaWAN device by MClimate with temperature measurement supported on EU863-870 (LoRaWAN 1.0.3). The Datacake template ships with a payload decoder, dashboard layout and downlink hooks where supported, ready to use on Datacake's free LoRaWAN Network Server.
Runs on Datacake's free LoRaWAN Network Server — no extra LNS bill, no per-gateway fee.
Device specifications
- Sensors
- temperature
- MAC version
- 1.0.3
- Dimensions
- W 36 mm · L 18 mm · H 32 mm
- Weight
- 24 g
- Battery
- non-replaceable
- IP rating
- IP30
- Operating temperature
- -10°C to 40°C
- Key provisioning
- custom, manifest
- Key security
- read protected
Manufacturer resources
About this device

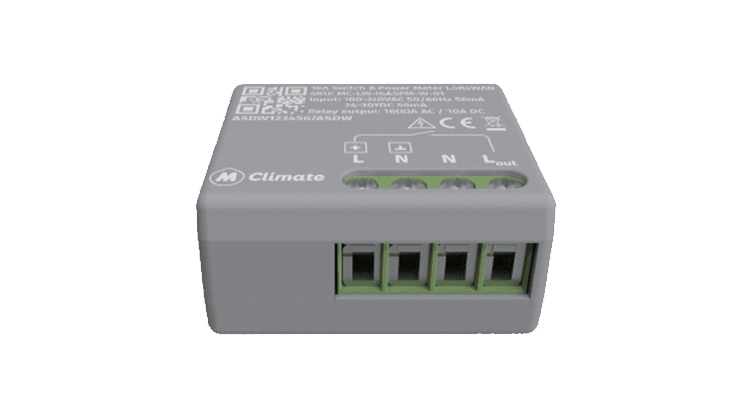

The МClimate 16A Switch & Power Meter LoRaWAN (16ASPM) is a miniature device that features a wet 16A relay and an electricity meter inside. The device has 4 terminals L, N, N, Lout, connecting and disconnecting Lout from Lin. The device operates in LoRaWAN Class C, features FUOTA (Firmware Upgrades Over The Air) and has overheating protection
