Milesight UC51x Series
Solenoid Valve Controller
Runs on Datacake's free LoRaWAN Network Server — no extra LNS bill, no per-gateway fee.
Device specifications
- Sensors
- battery, smart valve
- MAC version
- 1.0.3
- Dimensions
- W 116 mm · L 45.5 mm · H 116 mm
- IP rating
- IP67
- Operating temperature
- -20°C to 60°C
- Key provisioning
- custom, join server
- Key security
- none
Manufacturer resources
About this device

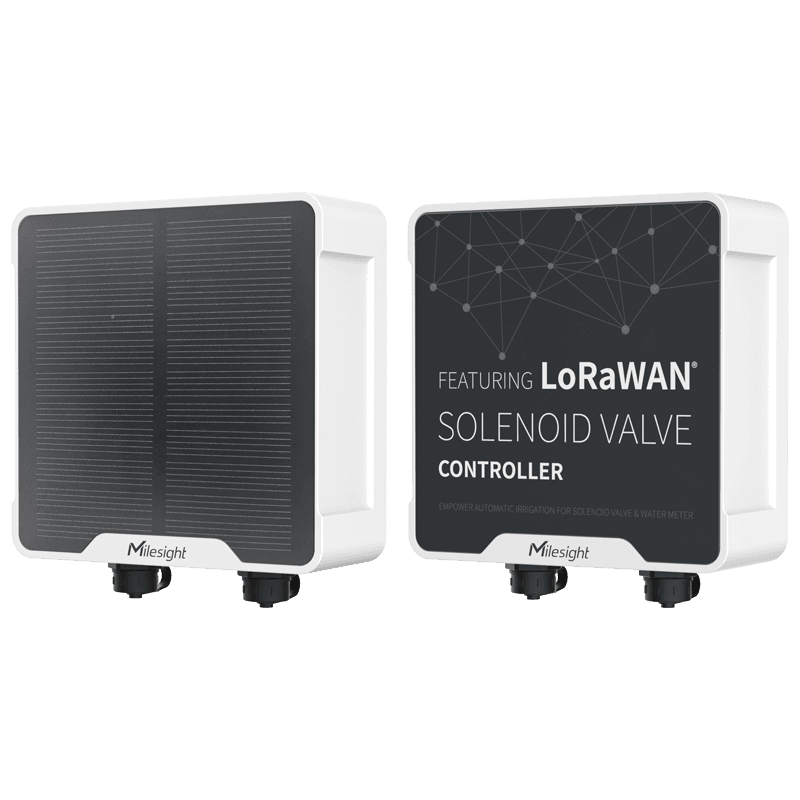

Milesight UC51x series is a device used to remotely control DC latching solenoids of the valve. It contains 2 solenoid interfaces and 2 GPIO interfaces, which can be easily controlled locally or remotely. Besides ultra-low-power LoRaWAN® technology, UC51x series also provides built-in solar pannel and high-capacity battery power supply for long-term operation. For outdoor applications, it equips with IP67-rated enclosure and M12 connectors to protect from water and dust under harsh environments.
