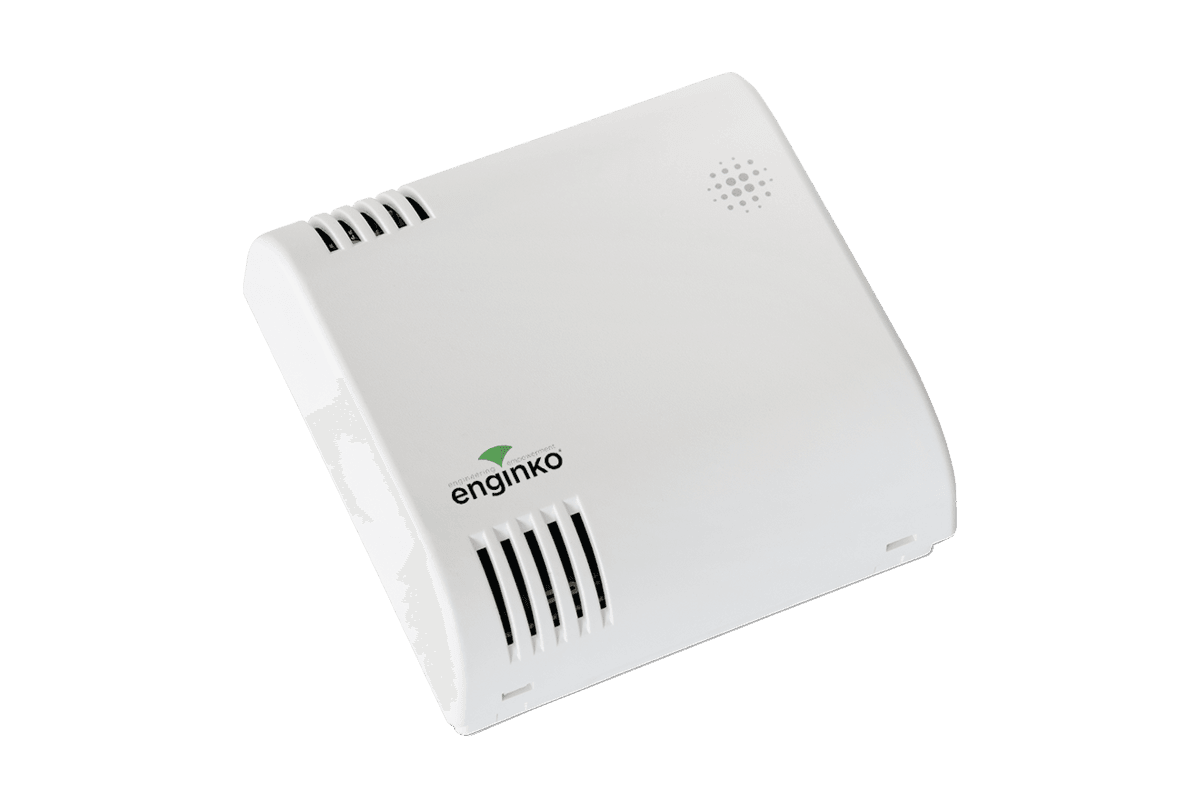

MCF-LW12VOC
The MCF-LW12VOC is a LoRaWAN device by Enginko with temperature, humidity, barometer measurement supported on AS923, AU915-928, EU863-870 (LoRaWAN 1.0.2). The Datacake template ships with a payload decoder, dashboard layout and downlink hooks where supported, ready to use on Datacake's free LoRaWAN Network Server.
Runs on Datacake's free LoRaWAN Network Server — no extra LNS bill, no per-gateway fee.
Device specifications
- Sensors
- temperature, humidity, barometer, light, bvoc, iaq, battery
- MAC version
- 1.0.2
- Dimensions
- W 25 mm · L 80 mm · H 80 mm
- Weight
- 170 g
- Battery
- pack · replaceable
- IP rating
- IP40
- Operating temperature
- -10°C to 60°C
- Key provisioning
- custom, join server
- Key security
- read protected
Manufacturer resources
About this device
The mfc88 MCF-LW12VOC is a LoRaWAN® end device that has a temperature sensor, humidity sensor, pressure sensor, light intensity sensor, and an air quality sensor for monitoring indoor environments. Ideally suited for a wide range of applications such as building automation, condition monitoring, predictive maintenance, security, healthcare, and many more use cases.
