MCF-LW12TERPM
The MCF-LW12TERPM is a LoRaWAN device by Enginko with temperature, humidity, barometer measurement supported on AS923, AU915-928, EU863-870 (LoRaWAN 1.0.2). The Datacake template ships with a payload decoder, dashboard layout and downlink hooks where supported, ready to use on Datacake's free LoRaWAN Network Server.
Runs on Datacake's free LoRaWAN Network Server — no extra LNS bill, no per-gateway fee.
Device specifications
- Sensors
- temperature, humidity, barometer, dust, particulate matter, pm2.5, pm10, battery
- MAC version
- 1.0.2
- Dimensions
- W 200 mm · L 210 mm · H 310 mm
- Weight
- 2500 g
- Battery
- pack · non-replaceable
- IP rating
- IP33
- Operating temperature
- -10°C to 60°C
- Key provisioning
- custom, join server
- Key security
- read protected
Manufacturer resources
About this device

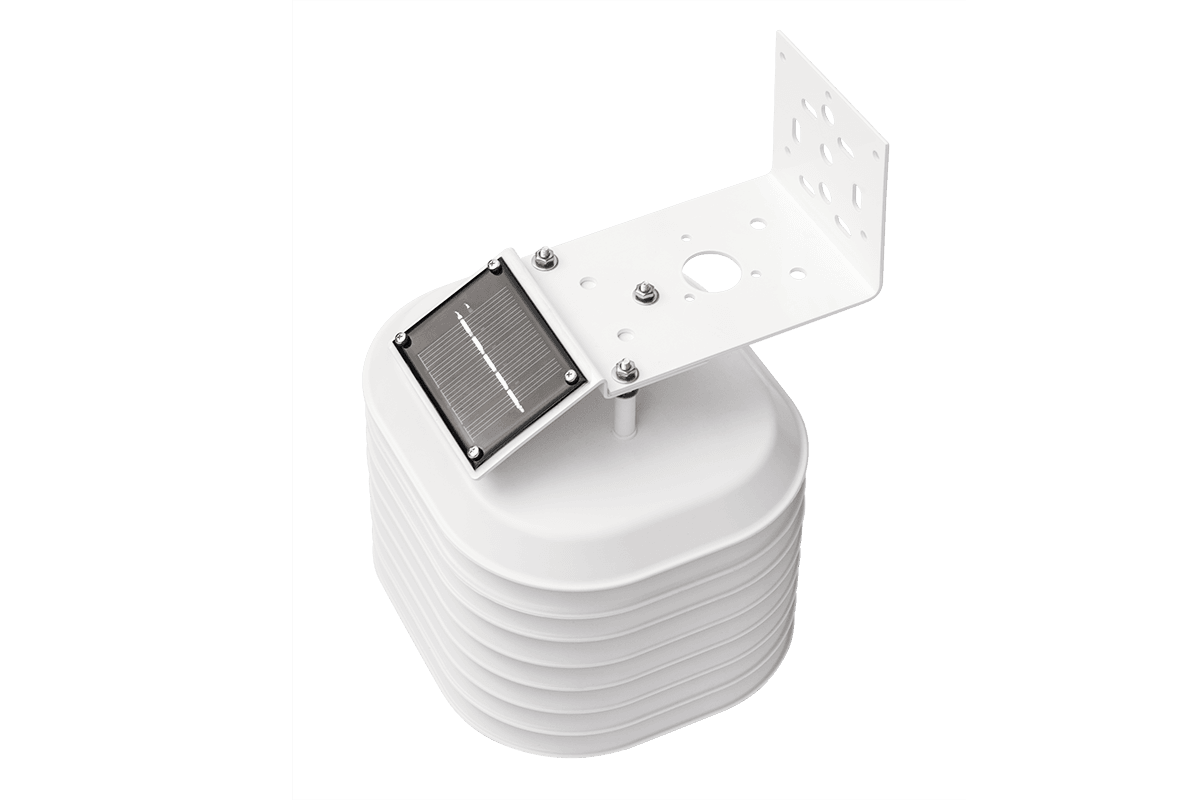

The enginko MCF-LW12TERPM is an outdoor PM and environmental sensor that consists of temperature, humidity, pressure, and PM (PM1, PM2.5, PM10) sensors. It sends collected data over the LoRaWAN® network. Ideally suited for a wide range of applications such as weather stations, urban monitoring, air quality, industrial, environmental, or farming projects.
